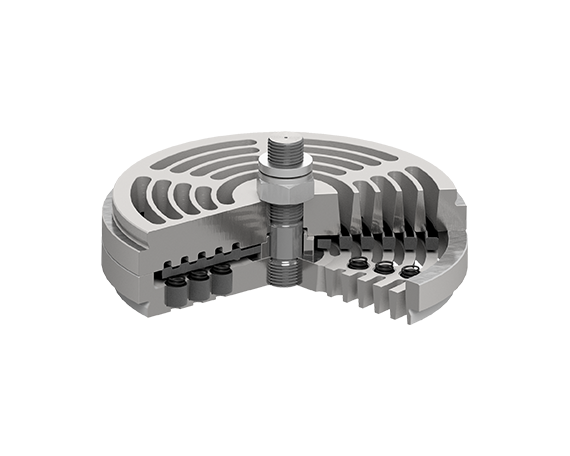

Cutaway of an XP and CP valve with PowerPEEK and refinery

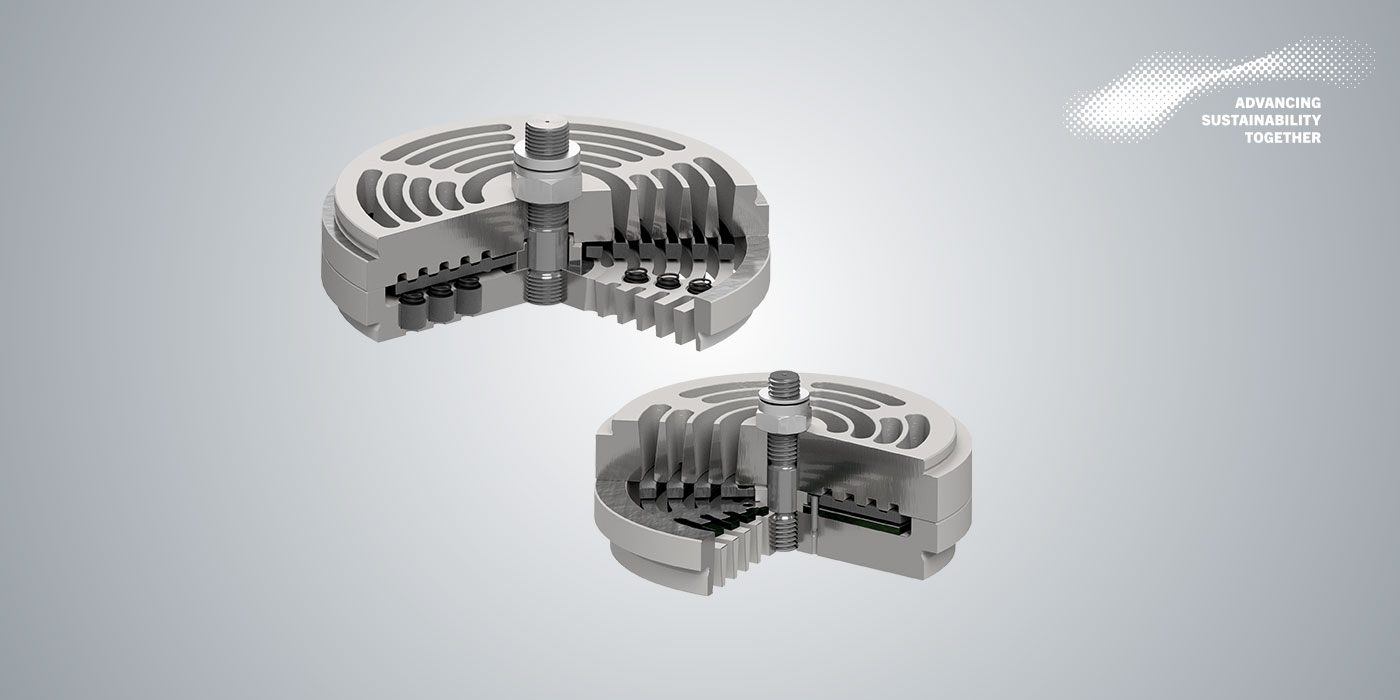

Profiled Plate Valves

For your process or natural gas application

Conventional valve designs have outlived their purpose when it comes to increasing the efficiency of compressors. Real increases in compressor efficiency can only be achieved through innovative designs. The compressor valve is the heart of the compressor, and the power regulator for overall compressor efficiency. To optimize reliability and saving energies, you need a technologically advanced valve that can do both. HOERBIGER’s XP and CP Profiled Plate Valve series combine all the properties to meet these requirements: PowerPEEK® plates with extreme efficiency and excellentflow characteristics for high compressor uptime. Further, you can drastically decrease the electric power and fuel consumption and reduce the related CO emissions when increasing the service life and up to 50% the efficiency in parallel. But not only that. The valves are also designed for applications in the field of green hydrogen, synthetic fuels, Bio gas and hydrogen transport as well as LNG boil off.

The best valves in efficiency without sacrificing reliability

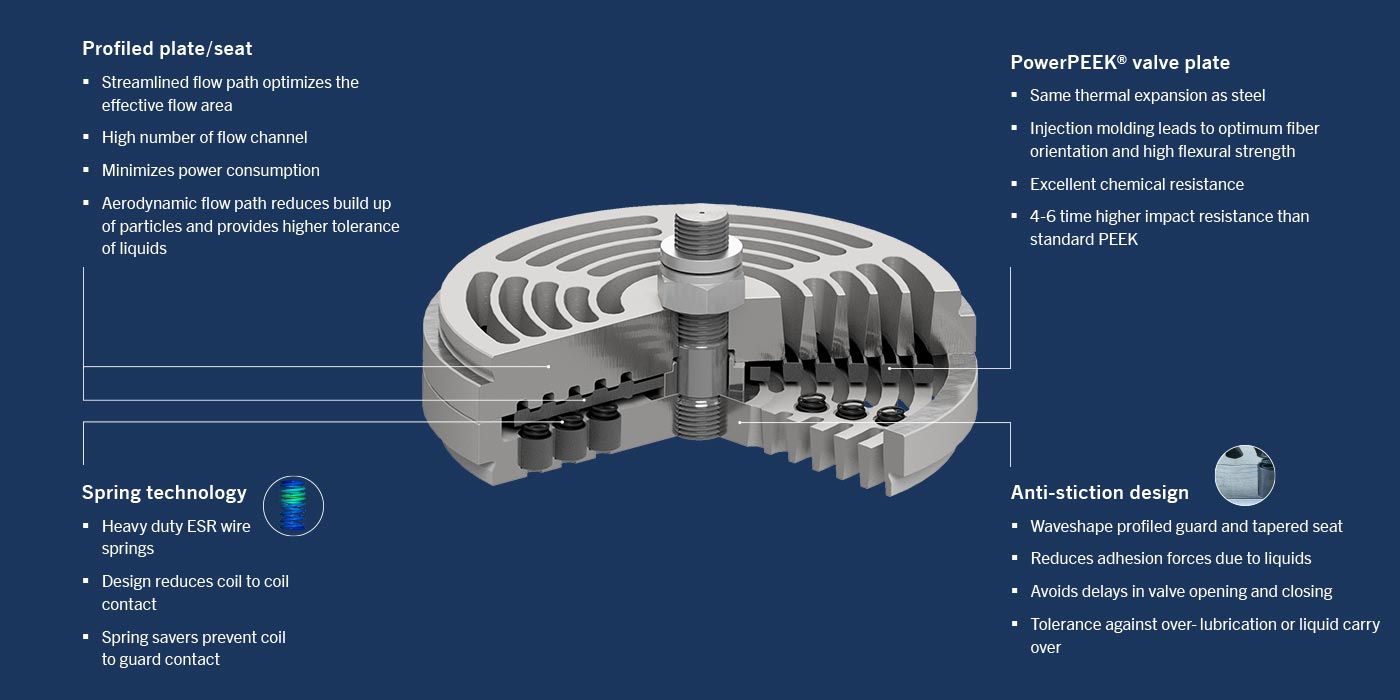

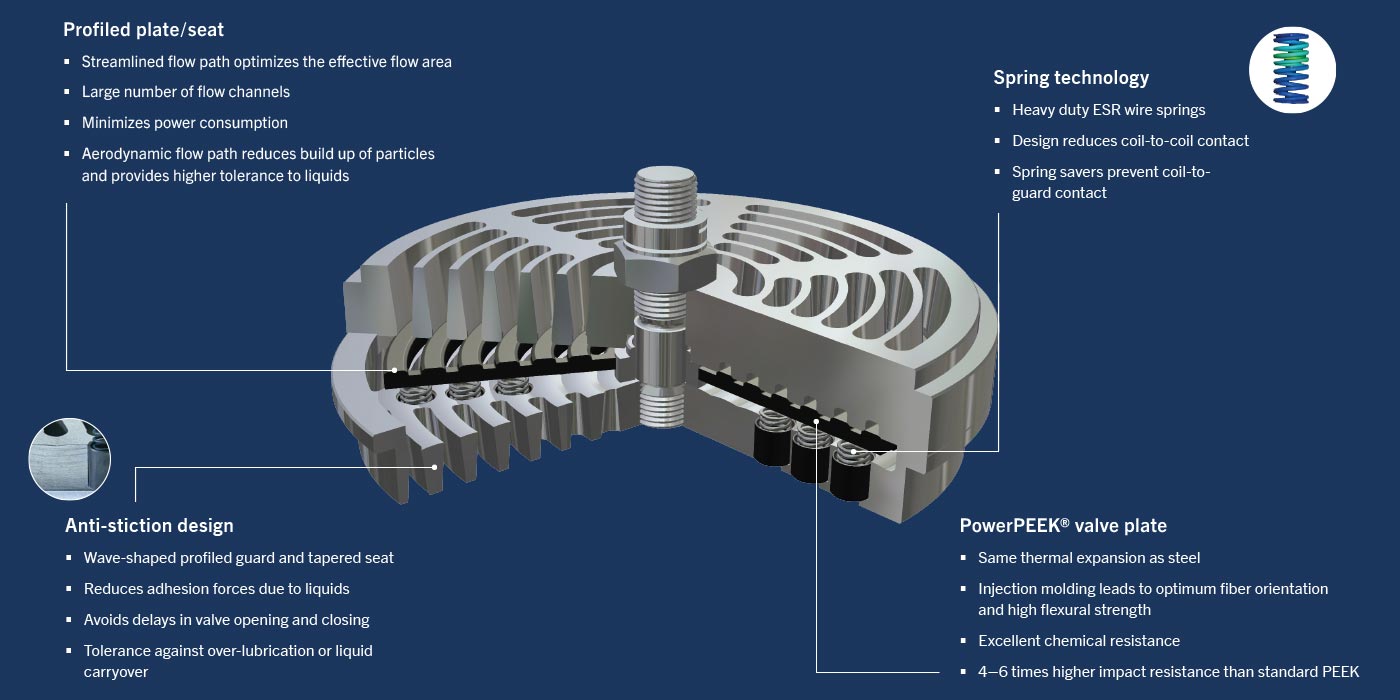

Characteristics of Profiled Plate Valves
POWERPEEK®  valve plate
PowerPEEK®: High-performance valve plate material means

High efficiency and fewer losses

PowerPEEK® and the unique design of profiled valve plates create a valve with extreme efficiency and excellent flow characteristics. This automatically improves the valve's reliability and durability. The construction of a finer-meshed ring section increases the effective flow area and hence the efficiency of the valve. The aerodynamic “rings” produce a lower pressure drop than plate valves, giving small amounts of liquid and debris the ability to pass. PowerPEEK® plates also offer an optimized distribution of reinforcing fibers and therefore wear less in operation. This leads to an increase in MTBF and MTBM, leading to less losses from unplanned maintenance.

Benefits at a glance

Long life and high compressor uptime, reduced electric power/fuel consumption and related CO₂ emissions.
Features
  • Profiled plate design
  • Spring savers prevent coil to guard contact
  • Injection molded high-performance PEEK® and finer-meshed ring section
Advantages
Excellent reliability for reduced downtimes, reduced maintenance costs and less emissions due to fewer on-site interventions.
Features
  • Aerodynamic flow path
  • Anti-stiction design: Waveshape profiled guard and tapered seat
  • Heavy duty springs made of ESR steel (Electro slag remelting)
Advantages
Lower total cost of ownership
Feature

High performance valve plate with tribological optimization.

Advantages
XP valve cutaway model
XP Profiled plate valve – our solution for process gas applications

With XP Profiled Plate Valves, you are always a step ahead. Efficiency, energy savings, reliability and service life are all requirements for gaining an edge in the market, and our XP valves are the ideal component to deliver these improvements for reciprocating in process gas industries.

XP Valve at a glance
Technical data
Main application:
Process gas
Max. discharge pressure:
300 bar
Max. differential pressure:
200 bar*
Min. suction temp.:
-40°C
Max. discharge temp.:
230°C
Mol weight:
2-50 g/mol
Max. speed:
1,500 rpm
Cylinder lubrication:
lube/ non-lube
Type diameter:
86-261 mm
* Maximum allowable differential pressure
depending on gas temperature.
Download
CP valve cutaway model with gripper

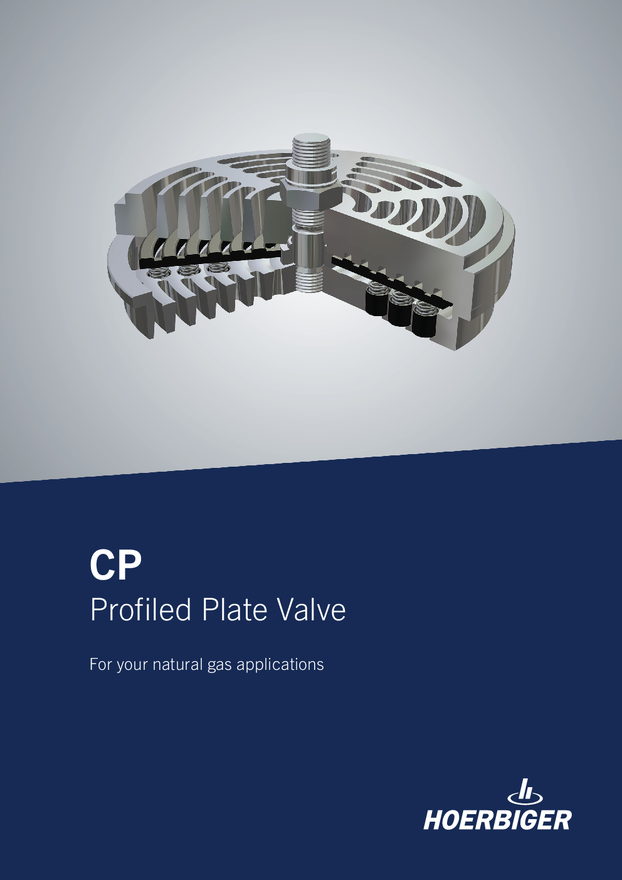

CP Profiled plate valve – our solution for natural gas applications

CP Profiled Plate Valves technology offers maximum efficiency, despite minimal lift, and excellent closing properties. Additionally, HOERBIGER created PowerPEEK® an innovative material that ensures robustness and durability – resulting in longer service life for valves and avoiding unplanned compressor downtime. These are properties that are important for compressors in natural gas applications.

CP Valve at a glance
Technical data
Main application:
Natural gas
Max. discharge pressure:
300 bar
Max. differential pressure:
200 bar*
Min. suction temp.:
-40°C
Max. discharge temp.:
230°C
Mol weight:
12-80 g/mol
Max. speed:
1,800 rpm
Cylinder lubrication:
lube/ non-lube
Type diameter:
88-212 mm
* Maximum  allowable differential pressure
depending on gas temperature.
Download

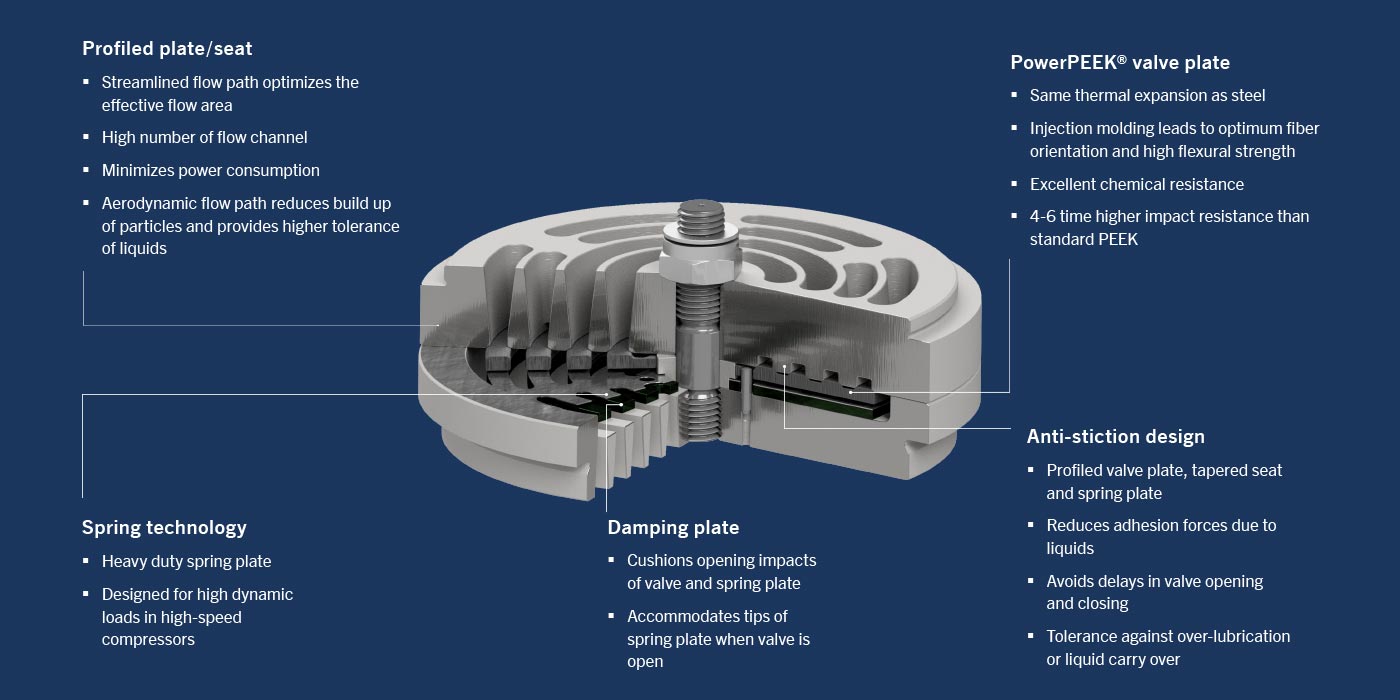

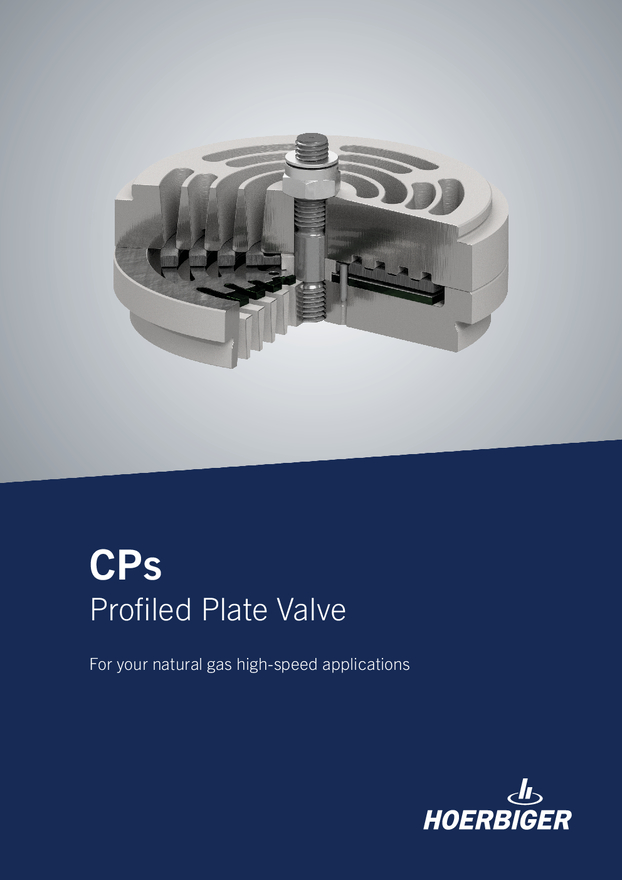

CPs valve at a glance
Technical data
Main application:
Process gas
Max. discharge pressure:
300 bar
Max. differential pressure:
200 bar*
Min. suction temp.:
-40°C
Max. discharge temp.:
230°C
Mol weight:
12-80 g/mol
Max. speed:
2,800 rpm
Cylinder lubrication:
lube/ non-lube
Type diameter:
38-90 mm
* Maximum allowable differential pressure
depending on gas temperature.
Download
