Components for reciprocating compressors

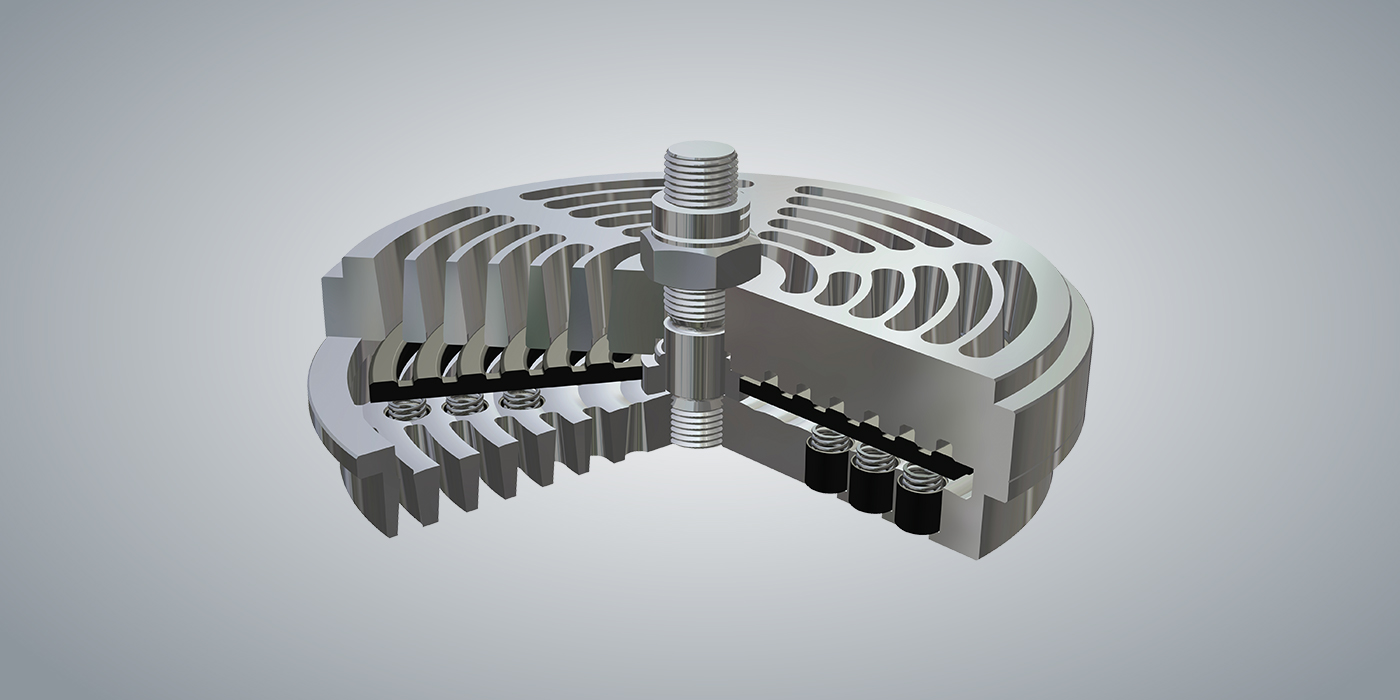

CP - Profiled Plate Valve for natural gas cut with PowerPEEK and refinery in the background

CP - Profiled Plate Valve for natural gas

When less is more: HOERBIGER CP valves.

Real increases in compressor efficiency can only be achieved through innovative, smaller designs – which place high demands on all their components.

Fewer valves for fewer cylinders, with the same or higher performance: Modern compact compressor designs save energy and money. Conventional valves cannot support new compressor designs effectively.

HOERBIGER developed the CP valve with these requirements in mind

Valves must be reliable, to avoid losing the benefits of higher efficiency. Profiled plate technology offers maximum efficiency, despite minimal lift, and excellent closing properties. Additionally, HOERBIGER created PowerPEEK®, an innovative material that ensures robustness and durability – resulting in longer service life for valves and avoiding unplanned compressor downtime.

CP valves are a prerequisite for greater compressor efficiency and reliability

 Leading the market requires being a step ahead. An innovative compressor design puts you ahead of competitors. CP valves make leadership possible. This is why HOERBIGER is an innovation partner for innovative companies.

CP valve with unloader
CP valve with unloader
CP valve cut with PowerPEEK and ESR wire springs
Heavy duty ESR wire springs
CP valve with PowerPEEK® plate
CP valve with PowerPEEK® plate

PowerPEEK® high-performance valve plate material means high reliability and extended service intervals

With the new design of the HOERBIGER CP valve, the combination of profiled seat and valve plate reduces flow losses and lowers energy consumption. PowerPEEK® and the unique design of profiled valve plates create a valve with extremely high reliability, durability, efficiency and excellent flow characteristics. The construction of a finer-meshed ring section increases the effective flow area and hence the efficiency of the CP valve. The aerodynamic „rings“ produce a lower pressure drop than plate valves and thus have the ability to pass small amounts of liquid and debris. Additionally PowerPEEK® plates offer an optimized distribution of reinforcing fibers and therefore less wear less in operation.

Flow diagram of PowerPEEK® plate
Optimized effective flow area
Profiled PowerPEEK® valve plate
Profiled PowerPEEK® valve plate

Benefits at a glance

Long life and high compressor uptime, reduced electric power/fuel consumption and related CO₂ emissions.
Features
  • Profiled plate design
  • Spring savers prevent coil to guard contact
  • Injection molded high-performance PEEK® and finer-meshed ring section
Advantages
Excellent reliability for reduced downtimes, reduced maintenance costs and less emissions due to fewer on-site interventions.
Features
  • Aerodynamic flow path
  • Anti-stiction design: Waveshape profiled guard and tapered seat
  • Heavy duty springs made of ESR steel (Electro slag remelting)
Advantages
Lower total cost of ownership
Feature

High performance valve plate with tribological optimization.

Advantages
CP Valve at a glance
USP
  • Unique design and materials developed in-house
  • Enables a revolution in compressor design
  • Maximum reliability and efficiency
Technical data
