Hydrogen Compressor Package
High-flow compression and flow management solutions for hydrogen compression
Hydrogen is a key element in the green energy transition. Together with our partners, we are on a mission to deliver the most cost-efficient hydrogen compression package available. To allow wide use of hydrogen for mobility and trailer filling, equipment must evolve from small demonstration projects into industrialized and efficient solutions, enabling you to meet your total cost of ownership expectations. Reciprocating compressors play a key role in reaching this goal. At Ariel and HOERBIGER, we have the technology to enable the most economic and reliable package for high pressure hydrogen compression.
Transport and storage of hydrogen will be a central issue of the future hydrogen economy. In addition to the type of production, transport and storage, there is a need for efficient compression solutions along the entire hydrogen value chain. Our Compressor Package is tailored to enable our customers efficient transportation and storage solutions for hydrogen applications.
Hydrogen mobility will play an important role in the energy transition of heavy duty vehicles such as trucks and busses. Together with Ariel, we provide a cost-efficient Compressor Package that is purposely designed to meet technical requirements of applications in hydrogen fueling station applications.
Standardized Compressor Package solution with lowest Total Cost of Ownership
- Built for purpose: unique integration of compressor components and compressor design to assure best run time and highest availability
- Stepless capacity control system enables operational flexibility to handle different customer applications
- Growing system: the flexible package grows with your needs and can handle economically feasible electrolyzer capacities between 4MW and 15MW
- The HOERBIGER compressor package enables the fuel station of tomorrow

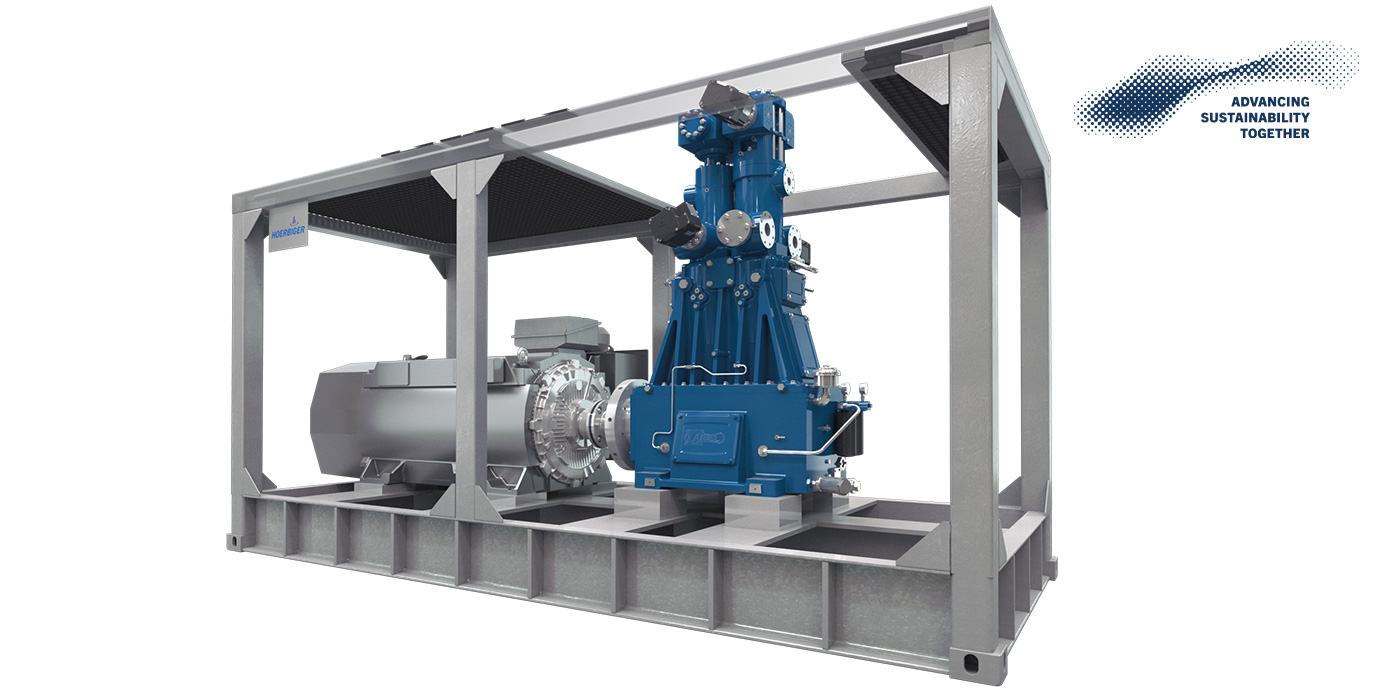

- Vertical reciprocating compressor from Ariel with > 250 kg/h mass flow at 25 bar suction pressure
- 20 to 100 % mass flow regulation for operational flexibility enabled by eHydroCOM, HOERBIGER's Stepless Capacity Control

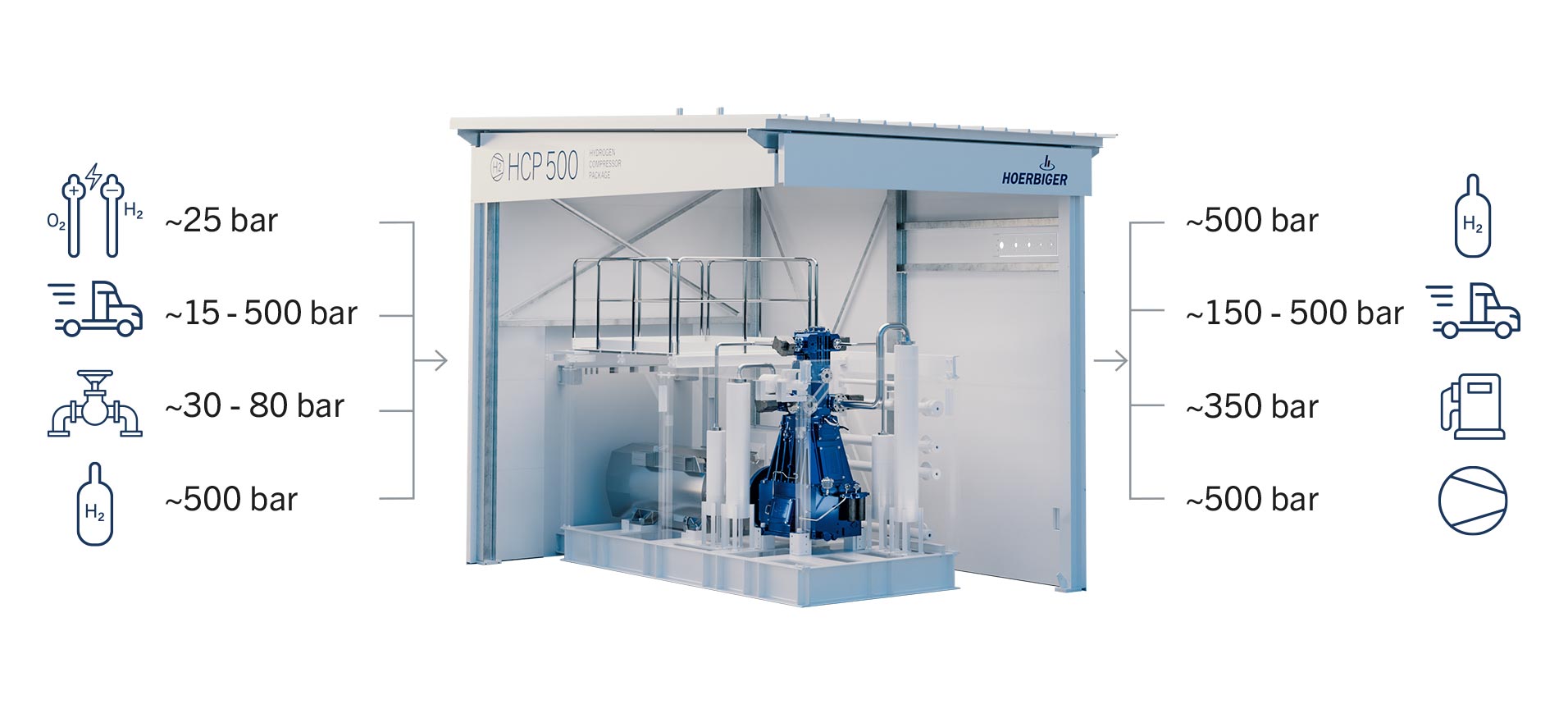

- Variable inlet and outlet pressures for outmost flexibility
- Turnkey solution with less than 30 m² footprint
- Supported by HOERBIGER’s global service organization

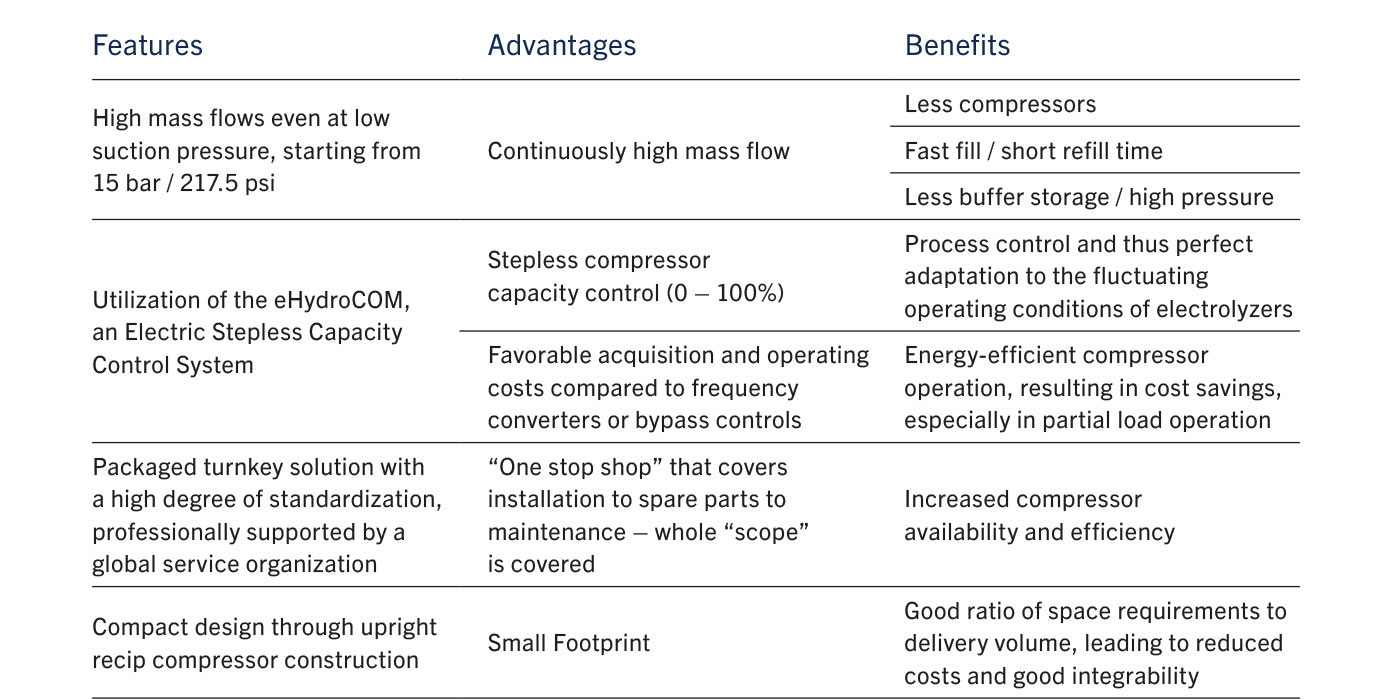

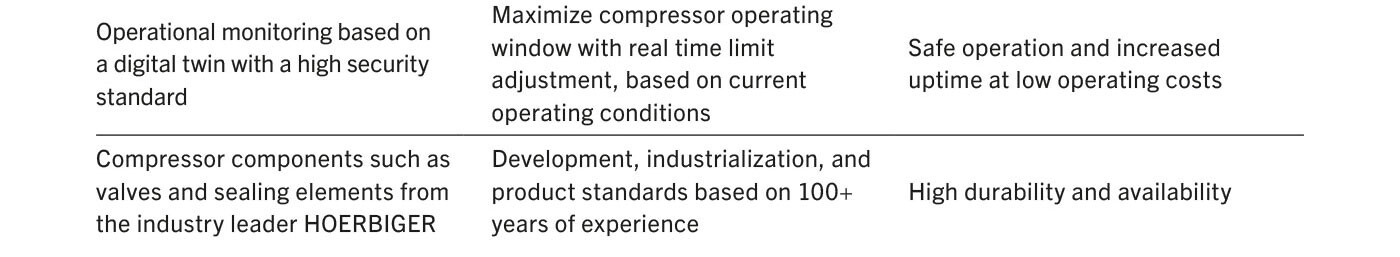

Benefits at a glance
The HOERBIGER Compressor Package is designed towards maximum flexibility and high degree of standardization.
In combination with HOERBIGER’s Stepless Capacity Control eHydroCOM, we enable our customers to compress Hydrogen from various kind of inlet sources to a wide range of Hydrogen applications.
Best catch in the market: best answer to the tough cost targets for H2.
- Ariel - reliable innovation and industry leading support
- Package standardization
- Optimized for
Grows with the demand: eHydroCOM enables large operation range (10% - 100%)
You can run initially low station need with same equipment as in full load.
Reliability and Availability are a key success factor for an efficient Hydrogen Compressor Package.
To respond to market requirements the product readiness is supported by a Hydrogen Test Bench at HOERBIGER and Ariel. This allows us to continuously improve our performance indicators like the MTBM and availability of our Hydrogen Compressor Package.
- Profiled plate valves (XP/CP/CPs Valve)
- Sealing solutions (rings-and-packings.hoerbiger.com)
- Flow control (eHydroCOM)
