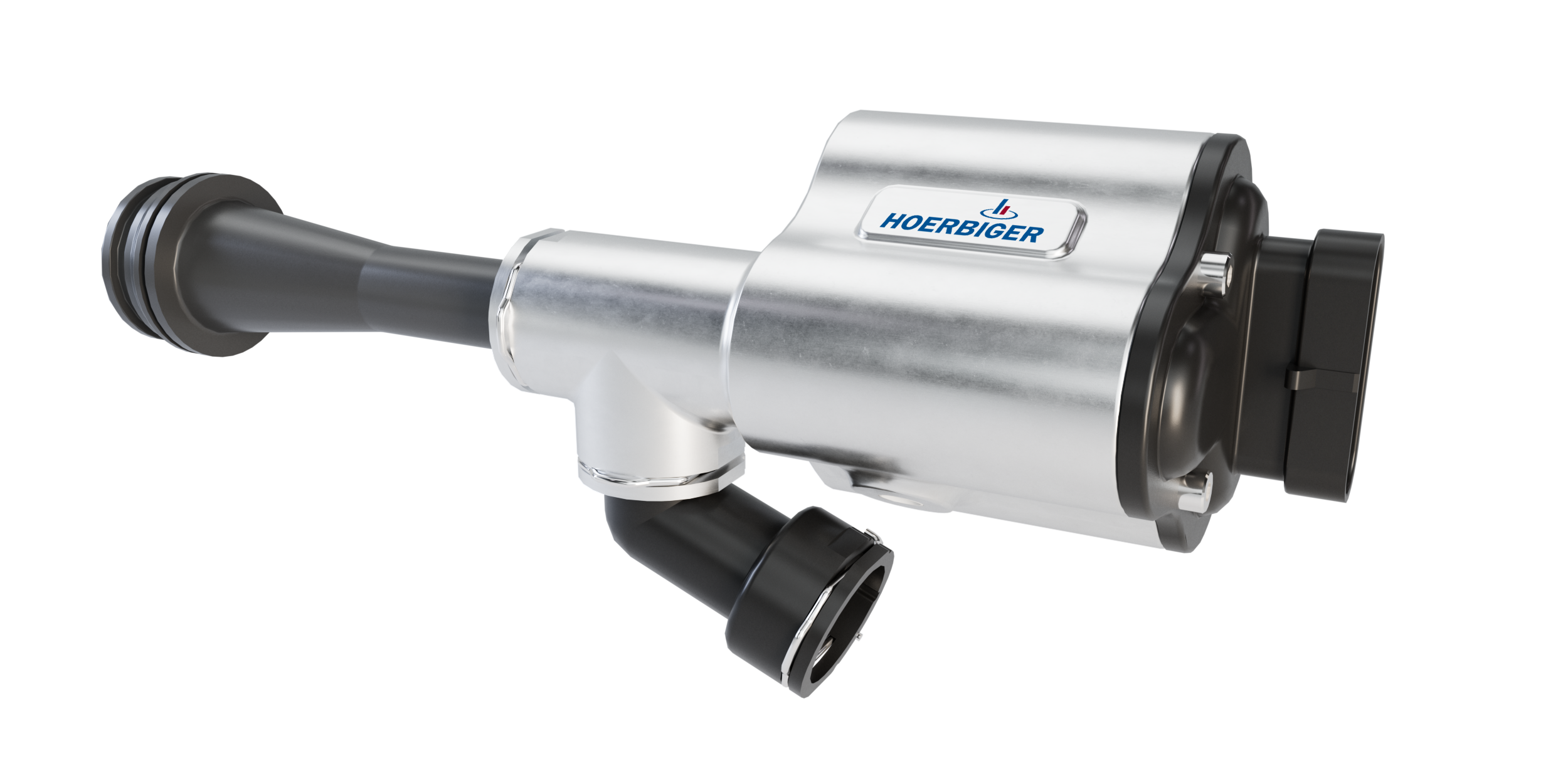

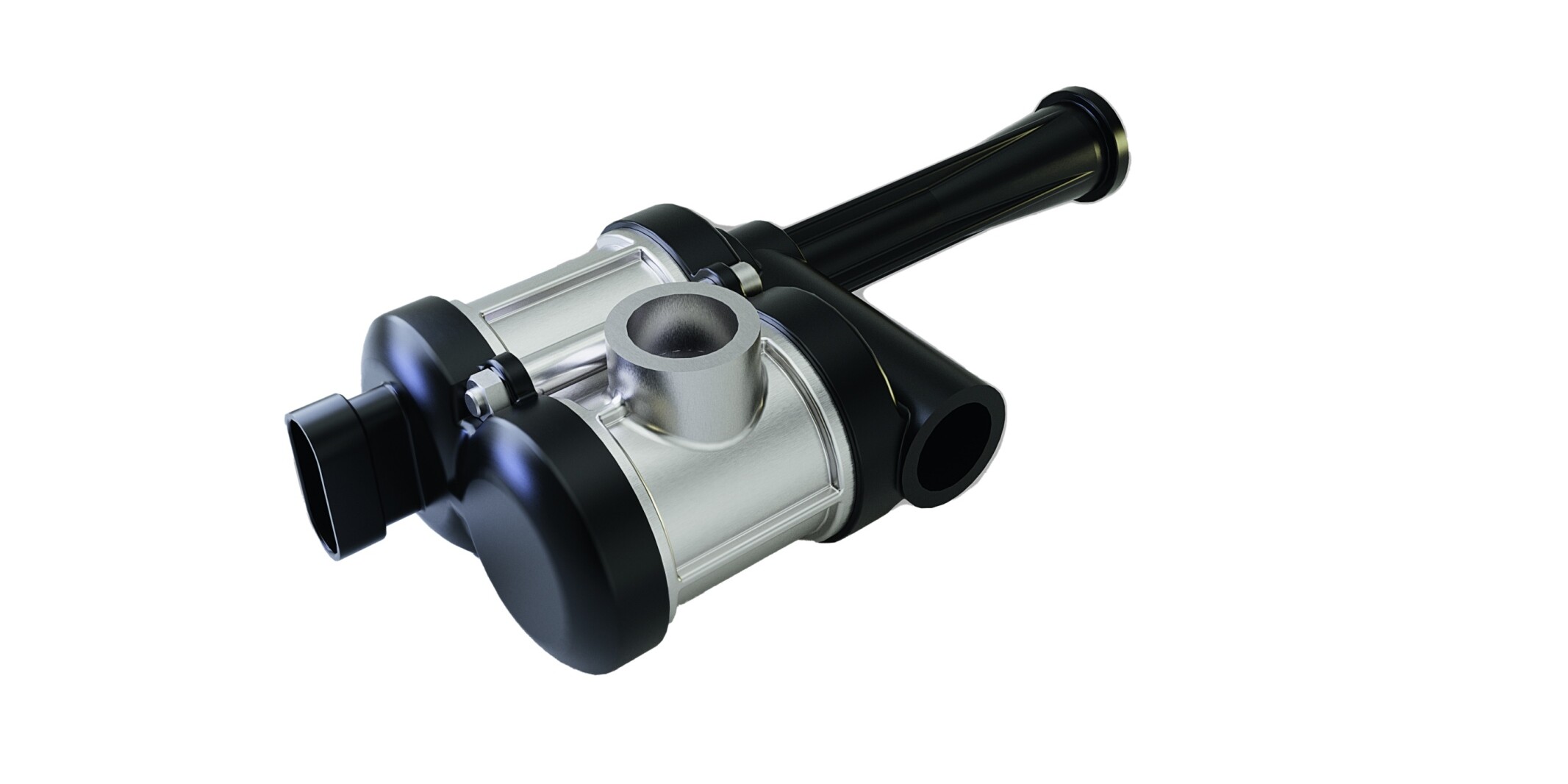

Hydrogen Pressure Control Unit

HPCU

Hydrogen Pressure Control Unit

Hydrogen Pressure Control Unit

The Hydrogen Pressure Control Unit ensures precise metering of the hydrogen in PEM fuel cell systems. In addition, a customized ejector system ensures recirculation of the anode gas. The HPCU thus eliminates the need for recirculation blowers, reducing costs while improving overall system efficiency.

Features:

  • Easy operation and very good controllability due to proven plate valve technology
  • Flexible control thanks to the double valve arrangement
  • Very good recirculation performance at low fuel cell load points
  • Economical and energy-efficient system (substitution of recirculation blower)
  • Integrated filter to protect the sensitive components of the fuel cell stack
  • Easily expandable for additional functionality (anode module incl. water management)
HOERBIGER Hydro Animation
Datasheet HPCU

Product information

Download now
PDF document
- 239 KB
